29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200)
About
29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200)
This 29-inch LCD monitor, designed as a high-performance replacement for CRT tube displays, features a 4:3 aspect ratio optimized for arcade and retro PC applications. It supports multiple scan rates (15kHz, 24kHz, 31kHz) and resolutions up to 1600x1200. Inputs include VGA, DVI, HDMI, and DisplayPort.
Arcade Machine & Gaming Industry
- Resolution Support: Handles multiple variations of 15kHz, 25kHz, and 31kHz arcade gaming resolutions.
- Proven Firmware: Backed by over 10 years of continuous upgrades, ensuring broad plug-and-play compatibility with Sega Model 2/3, Neo Geo, Namco System 256, Sega Triforce, and standard JAMMA boards.
- Auto Picture Function: Optimized with real arcade boards—simply press the auto button for perfect centering.
- Flexible Mounting: Includes angle brackets, rear mounting connections, and VESA mount options for maximum installation versatility.
- Optional OSD Control Board: External adjustment panel for convenient front-facing access.
- Optional RGB Adapter PCB: Enables plug-and-play with CRT wiring, plus fine-tuned color control via red, blue, and green potentiometers.
- Wide Viewing Angles: Suitable for all arcade cabinet types.
- Advanced Screen Adjustments: Includes picture rotation and multiple display settings.
Note: This is a viewable 29-inch 4:3 LCD monitor, which may be oversized for certain arcade machines. A 26-inch 4:3 model may be more suitable. Traditional 29-inch CRTs often have a view size of 27–28 inches. Please measure your cabinet’s bezel view area and compare with our monitor dimensions (see product screenshots for detailed sizing).
Home Retro & PC Gaming
- Extensive Input Modes: Over 160 pre-programmed PC modes, including 240p, 480p, 720p, and up to 1600×1200.
- Superior Visuals: Full-angle viewing, 16.7M color reproduction, and a 1200:1 contrast ratio.
- Easy Setup: VESA mounting for desktop use.
- Audio Support: 3.5mm jack for breakout speakers.
- Optional Remote Control: Adds convenience for home users.
Digital Display & Desktop PC
- DisplayPort MST Support: Input and output ports allow daisy-chaining multiple monitors from a single PC cable.
- Mirror Clone Mode: Duplicate one image across multiple screens.
- Extended Mode: Run multiple monitors with independent displays.
- Picture-in-Picture: Flexible overlay options.
- Split Screen Functions: Top/bottom, left/right, or 4-way screen splitting.
- Audio Connectivity: 3.5mm jack for external speakers.
Additional Applications
Although designed for arcade use, the Arcooda 29-inch 4:3 LCD monitor is equally suited for industrial control systems, military applications, and digital media such as photography and videography.
Key Features:
- 1× RGB/VGA input
- 2× DVI inputs
- 2× HDMI inputs
- 3× DisplayPort inputs
- Support for Freesync, Ultra HDR, DDCCI, UltraVivid, and other advanced display settings
29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200) Product
Details
Monitor Size : 29inches
Backlight: WLED
Resolutions : 160+ pre-programmed settings including 15Khz/24khz/31Khz, 240p, VGA 640x480 to UXGA 1600x1200
Display Mode : IPS
Inputs : VGA, DVI, HDMI, DisplayPort
Colour Depth : 8bit, 16,7 M colours
Pixel Format : 1600 horizontal x 1200 vertical
Contrast Ratio : 1200 : 1 (Typ.) (TM)
Refresh Rate : 60Hz
Viewing Angles : 89°/89°/89°/89°
Viewing-area Dimensions (mm's) : 598.4 x 447.6
Physical Dimensions (mm's) : 628 x 477.2 x 73
Physical Dimensions with Mounting Frame (mm's) : 666.4x515.6
Weight (kg's) : 8.1 (not include the mounting plate)
Power : +12vDC 7A (100-240vAC)
Operating Temperature : TOP 0~50 °C 1
Storage Temperature : TST -20~60 °C 1
Operating Ambient Humidity : HOP 10~90 %RH 1
Storage Humidity : HST 10~90 %RH 1
Packing Included:
1x 29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200)
1x 4K HDMI Cable
1x 1080P VGA Cable
2x left/right mounted installation brackets
2x top/bottom mounted installation brackets
1x 12volt power supply
29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200) Other
Details
Product ID:
011822
Item Type:
Monitors, Chassis
Country:
China
Available:
6~8 weeks
Condition:
New
29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200) Images

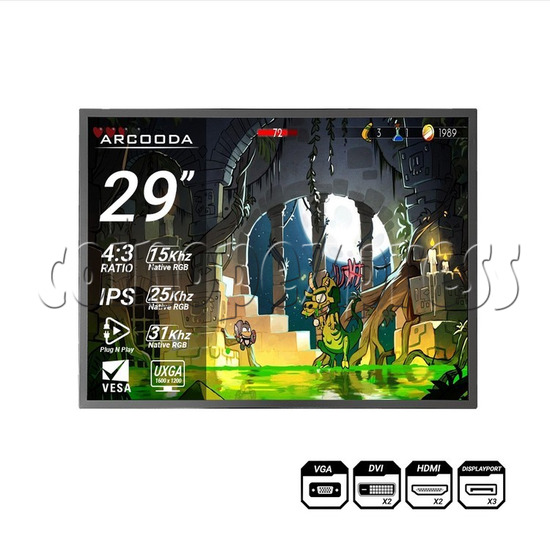

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor (supports CGA / EGA / VGA / up to 1600x1200)

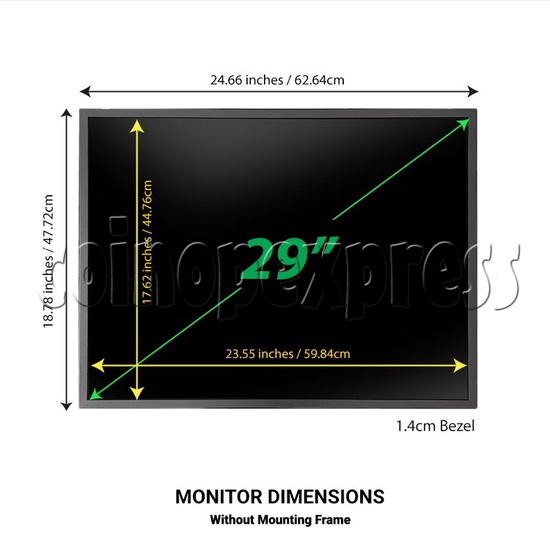

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor Dimensions

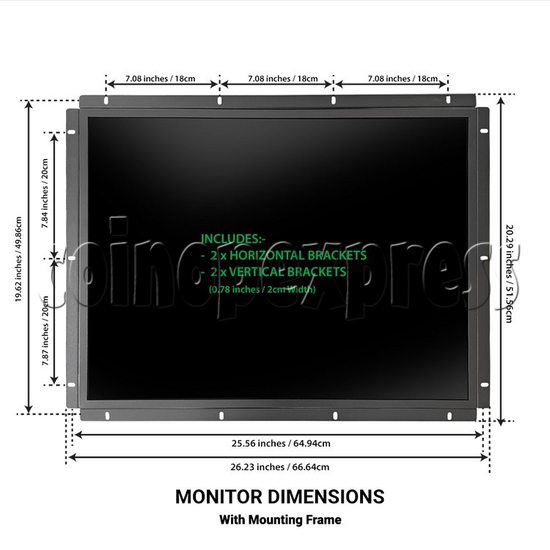

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor Dimensions with Mounting Frame

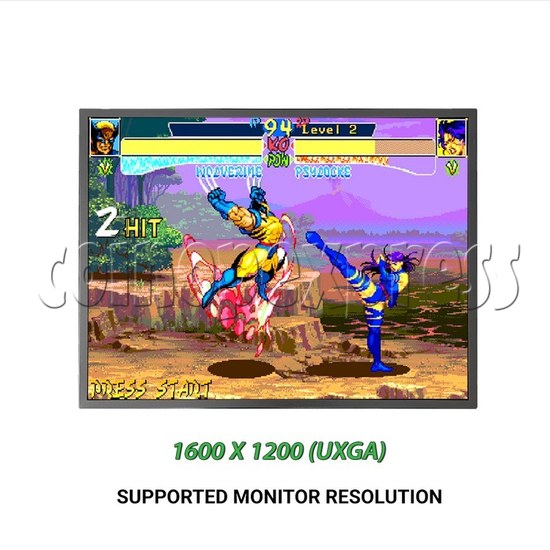

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor supports CGA / EGA / VGA / up to 1600x1200

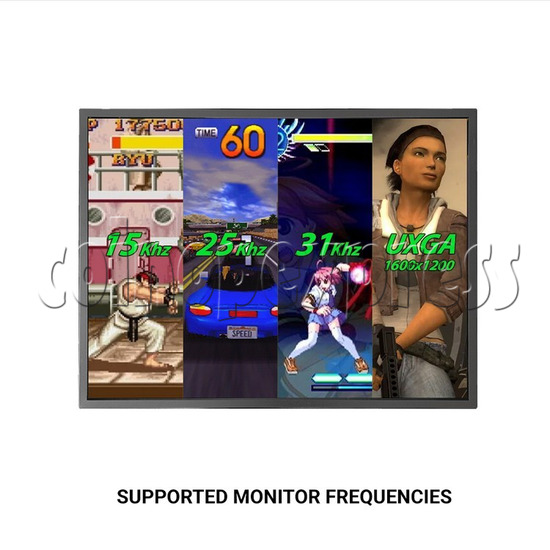

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor supports different frequencies

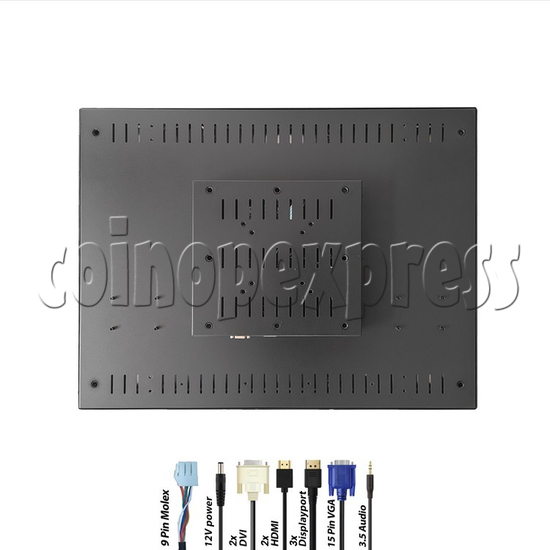

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor supports different Video input

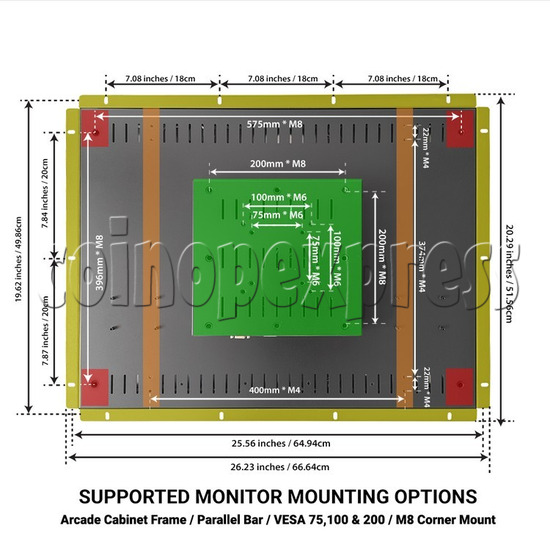

29 inch Retro Style 4:3 Aspect Ratio LCD Monitor has different mounting options
